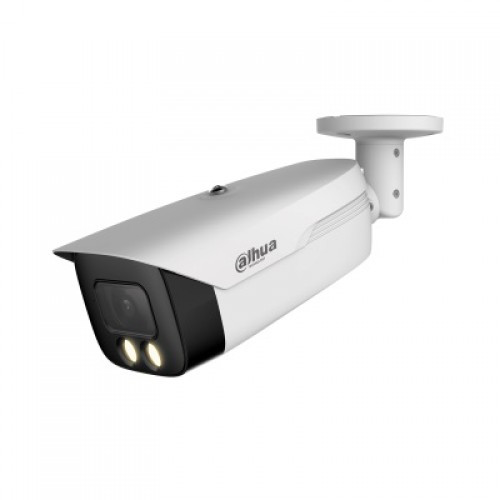

Dahua DH-HAC-HFW1509MHP-A-LED 5MP Color HDCVI Bullet Camera Dahua DH-HAC-HFW1509MHP-A-LED 5MP Color HDCVI Bullet Camera Product Page After Image | bKash Dahua DH-HAC-HFW1509MHP-A-LED 5MP Color HDCVI Bullet Camera

Sold by

n2sys

(0 customer reviews)

Visit Store

Top Selling Products

Description reviews

Specification

General
Casing	Metal front cover + plastic main body + plastic bracket
Dimensions	304 mm × 108.4 mm × 90.8 mm (11.97" × 4.27" × 3.57")
Weight	Net Weight: 0.82 kg (1.8 lb) Gross Weight: 1.25kg (2.8 lb)
Pan/Tilt/Rotation	Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°
Operating Conditions	–40 °C to +60 °C (–40 °F to +140 °F); < 95% (non-condensation)
Storage Conditions	–40 °C to +60 °C (–40 °F to +140 °F); < 95% (non-condensation)
Power Supply	12 V ±30% DC
Power Consumption	Max 6.4 W (12 V DC, warm light on)
Camera
Image Sensor	5MP CMOS
Effective Pixels	5MP
Scanning System	Progressive
Electronic Shutter Speed	PAL:1/3 s–1/100,000 s NTSC:1/4 s–1/100,000 s
Minimum Illumination	0.001 Lux/F1.0, 0 Lux warm light on
S/N Ratio	> 65 dB
Lens
Lens Type	Fixed lens
Mount Type	M12
Focal Length	3.6 mm; 6 mm
Max Aperture	F1.0
Angle of View	3.6 mm: H: 88; V: 46°; D: 104° 6mm: H: 59; V: 32°; D: 67°
Close Focus Distance	3.6 mm: 2.3 m (7.5 ft) 6mm:4.5m (14.8 ft)
Video
Resolution	2880 (H) × 1620 (V)
Frame Rate	TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H
Video Output	CVI/TVI/AHD/CVBS by one BNC port
BLC Mode	BLC/HLC/WDR/HLC-Pro
Gain Control	Auto; manual
Noise Reduction	3D NR
Interface
Audio Interface	One channel built-in mic
Video Interface	CVI/TVI/AHD/CVBS by one BNC port
Warranty
Warranty	01-year warranty
